Product Description

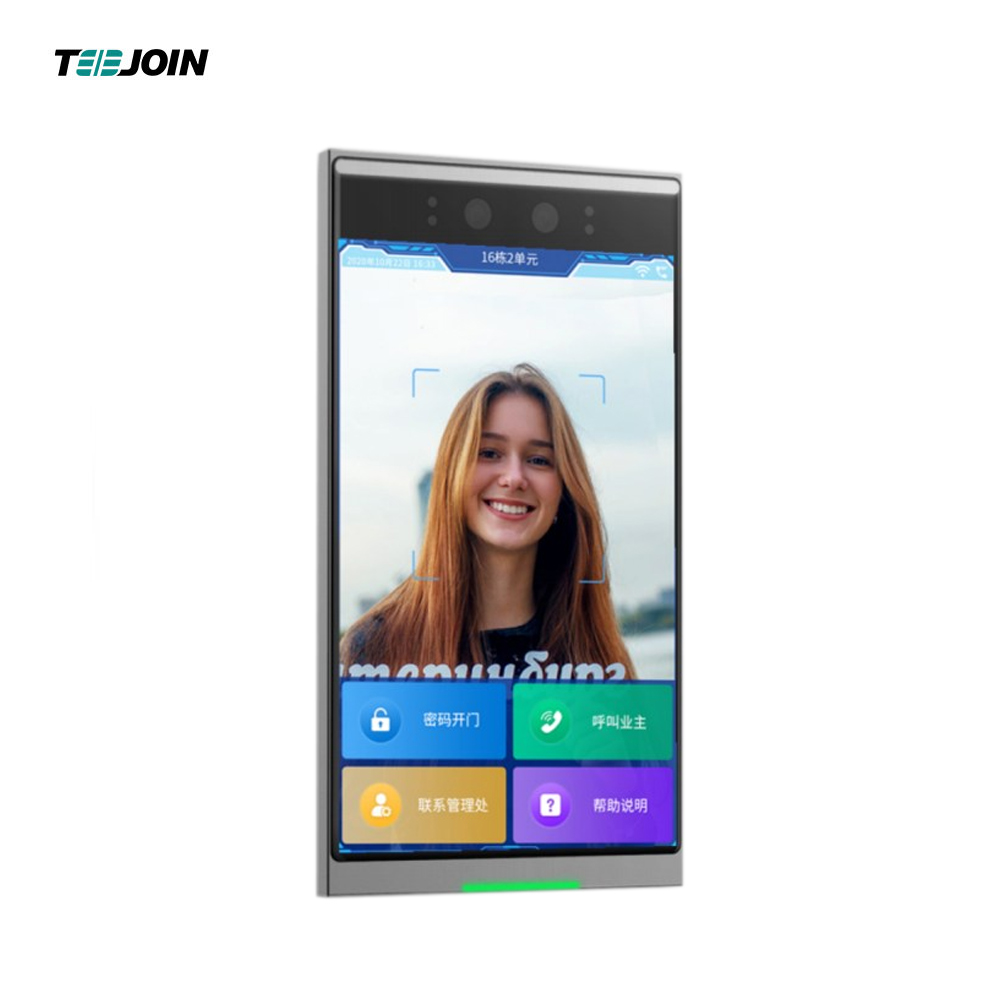

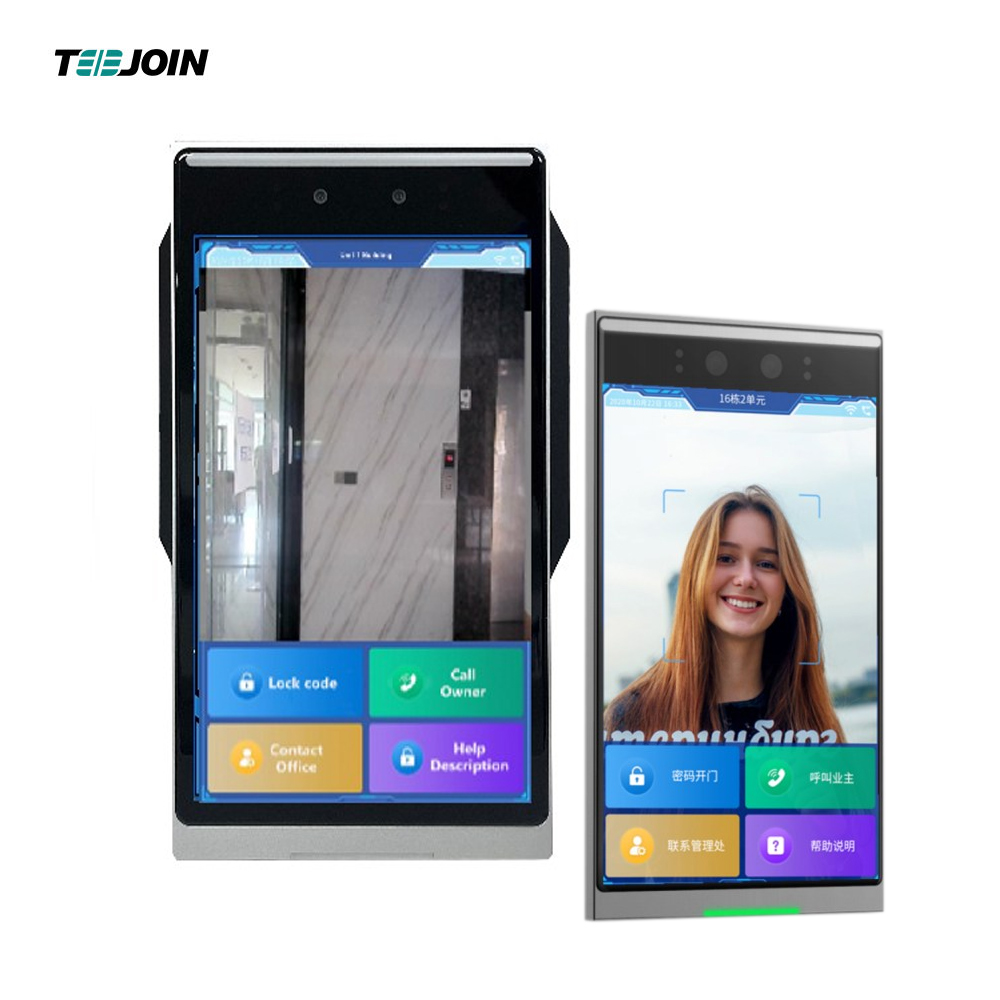

Android / Linux Free SDK Software Terminal Face Recognition Intercom
1. Product Overview
1.1 Product application field This product is a smart Android motherboard, suitable for face recognition terminals such as access control, turnstiles, and security terminal products, with a small product area and ultra-thin design, which is easy to embed in various complete equipment, such as: AI learning, AI speech recognition, with TensorFlow, Caffe and other mainstream deep learning computing frameworks used in artificial intelligence scenarios.
1.2 Product Overview
This product adopts RK3399 main chip scheme, CPU adopts dual-core Cortex-A72 large core + quad-core Cortex-A53 small core structure, single-core frequency up to 1.8GHZ, GPU adopts Mali-T86. The chip adopts 28nm process, no delivery risk, higher main frequency, smaller area, and more stable system. Powered by Android 7.1 operating system. The built-in 4K video decoder engine supports H.264, H.265 and other decoding and high-definition video, thus constituting a multi-media AP with high cost.
1.3 Product Applications
This product is suitable for access control, turnstile and other security
terminal products, the product area is small, ultra-thin design, easy to use in various scenarios, such as: schools, offices and communities access recognition and attendance sign-in, high-speed rail stations, airport boarding pass gates, private apartment doors, scenic spots, museums, research institutes and other public places of visitor acces
Product model | ZG-CM381/B | |
|---|---|---|
Screen | Size | 220*130*19MM |
Resolution | 800×1280 (default) | |
Touch | Support | |
Main hardware | CPU | Dual-core Cortex-A72 large core + quad-core Cortex-A53, with a frequency of 2G |
GPU | Mali-T86 | |
memory | DDR comes standard with 2G | |
Local storage | EMMC comes standard with 8G and supports external TF cards | |
Interface | Network module | SupportEthernet, wirelessperipheralexpansion,2.4GHz Wi-Fi ,built-in 4G |
Serial communication interface | 1 x UART/RS232 socket | |
Relay output | 1 channel door opening signal output | |
Wiegand interface | 1 Wiegand 26/34 input/output | |
Wired network interface | 1 x RJ45 Ethernet socket | |
Blue tooth | Support BLE 4.0 | |
Motion SENSOR | Transmit frequenc | 5.8GHz- |
3DB WAVE VELOCITY ANGLE | XZ 93°,YZ 70° | |
Sensing distance | 2-3 miller | |
| Function | Face detection | 20,000 faces, binocular live single recognition |
1:1 face comparison | Support | |
Stranger detection | Support | |
Identify distance configurations | Support | |
Attendance and clock-in | Support | |
Night-time sensing | Support | |
Mask mode | Support | |
Configure the UI | Support | |
Remote device upgrades | Support | |
Language | Chinese, English, Korean, Japanese, Thai,Mongolian, Portuguese | |
How it is deployed | Stand-alone on-premise deployment;Networking cluster deployment | |
Generalparameters | Durability | 5-10 Years |
Power supply | DC12V（±10%） | |
Operating temperature | 0℃~50℃ | |
Storage temperature | -20℃~60℃ | |
power consumption | 13.5W（Max） | |
Device dimensions | 217*121*19mm | |
Camera | Resolution | 200W*200W |
Aperture | F2.0 | |
Focal length | 4.30m | |
Dynamic range | 105d | |
Signal-to-noise ratio | 41db | |
Visible wide angle | 73° | |
White balance | In the tank | |
Palmar vein(optional) | Authentication method | Palmar vein recognition (1:N and 1:1recognition) |
Certification rate | The rejection rate FRR=0.01%, the falseadmission rate FAR = 0.0001% | |
User capacity | The local< 1,000 people, and the onlineserver supports > 100,000 people | |
Camera | 2,000,000 pixels (monocular | |
Identify the comparisontime | 1:1 mode<1s; 1:N mode<2s (100,000 pcs) | |
QRscanner(optional) | Image (Pixels): | 640 pixels (H) x 480 pixels (V) |
Light Source | White color LED | |
Rotation Tilt DeflectionRoll / Pitch / | Yaw：360°, ±65° , ±60° | |
Motion tolerance | 40cm/s |

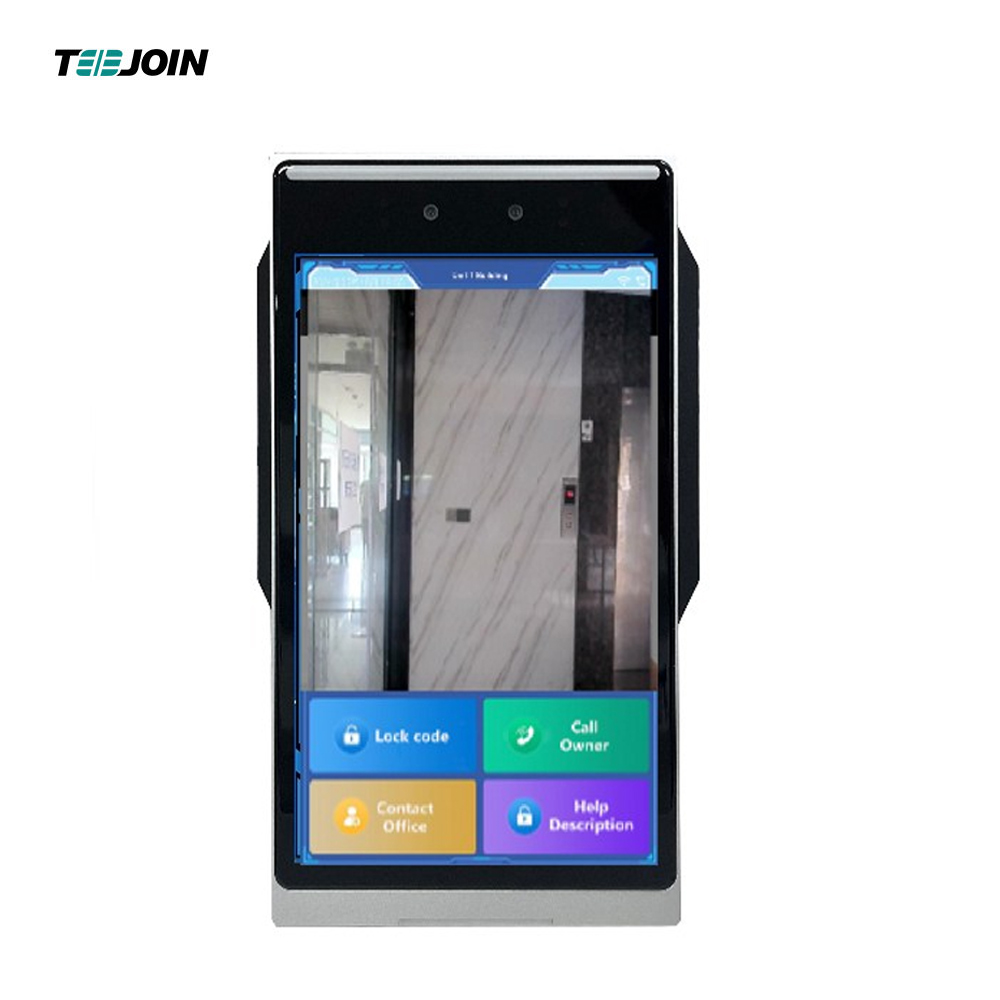

Wall-mounted

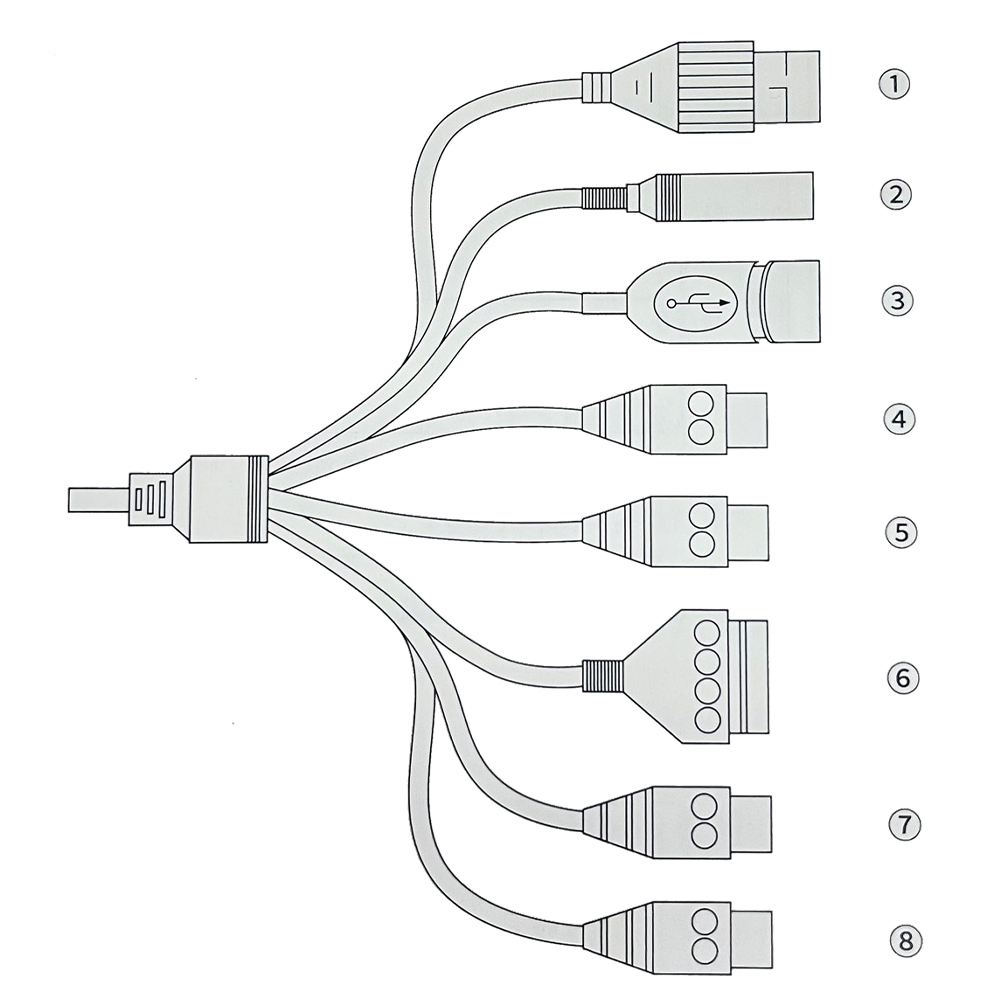

Ethernet port | RJ45 |
|---|---|
Relays | Orange: NO, Brown: COM, Yellow: NC |
Wiegand input | Light Green: WG1_D0, Purple: WG1_D1, Black: GND |
Wiegand output | Gray: WG2_D0, White: WG2_D1, Red: DC12V+, Black: GND |
RS485 | White-violet: 485+, white-brown: 485-, black: GND |
power supply | Red: +12V, Black: GND |
Signal input | WHITE-RED: DOOR MAGNET, GREEN: OPEN, PINK: INPUT, BLACK: GND |
USB | USB 2.0 |
Ethernet port | RJ45 |
|---|---|
Relays | 1:NO，2:COM，3:NC |
Wiegand input | 1:DI0，2:DI1，3:GND |
Wiegand output | 1:12V+，2:GND，3:DO0，4:DO1 |
RS485 | 1:485+，2:485-，3:GND |
power supply | DC12V IN |
Signal input | 1:INPUT,2:GND |
USB | USB 2.0 |
Features:
1、CPU dual-core Cortex-A72 large core + quad-core Cortex-A53,frequency > 2G, GPU: Mali-T86
2、Camera binocular 200 wide dynamic range
3、The number of face users supported: 20,000, and (optional) thenumber of palm vein users: 1,000
4、8-inch high-split screen, IPS full viewing angle, 800*1280resolution, >500 open stream. Multi-touch.
5、The motherboard integrates 4G module, and the communication ismore stable. External card insertion, and there is securityprotection, anti-unplugging.
6、Support anti-folding alarm and fire alarm input.
7、Support guest video call, remote door opening, and dynamicpassword door opening.
8、Support 2W face library. The recognition rate is 99.67%. The speedof face recognition is 0.3 seconds
9、Support applet, APP video call, remote door opening, userregistration, etc.
10、The management platform supports WEB deployment and domesticoperating system.
11、Support announcement notification, video playback, and supportusers to set playback policies.
